Migrate from Autobuilds

This guide explains how to migrate your Docker Hub Autobuilds setup to Continuous Integration (CI) workflows, focusing on GitHub Actions and Bitbucket Pipelines as these are the built-in CI services for the two version control services supported via Autobuilds.

Step 1: Create access tokens

To grant your CI workflows the ability to pull and push images to and from Docker Hub, you first need to create access tokens:

• For a personal repository: Create a Personal Access Token with Read & Write permissions.

• For an organization repository: Create an Organization Access Token with the following permissions:

  • Read public repositories
  • Image Pull on any private repositories that the build needs to pull from
  • Image Push on the repository that the built image will be pushed to

The same token can be used for all CI workflows under the account's namespace provided it has adequate permissions to all relevant Docker Hub repositories.

Store the token securely in a password manager or your CI/CD platform's secrets manager. Never commit tokens to source code repositories.

Step 2: Extract your Autobuilds configuration

For each Docker Hub repository currently configured to use Autobuilds, you need to extract its configuration to set up your CI workflows to duplicate the existing functionality. The only way to extract the configuration is via the Docker Hub web interface.

1. Sign in to Docker Hub.

2. Navigate to your repository by going to My Hub > Your namespace > Repositories > Your Repository.

3. Go to the Builds tab and select Configure automated builds.

   If there is no existing build configuration, then this repository is not configured for Autobuilds.

4. Note the following configuration details:

   • Source Repository: The GitHub or Bitbucket repository. The organization is the namespace and the repository is the repository name. This is where you need to add your workflow.

   • Autotest: If Autotest is enabled for Pull Requests (either internal only or internal and external), then extra steps are needed in your workflow to run the Autotest step.

   • Repository Links: Not supported and can be ignored. If chain builds are required, see the documentation for your CI service on how to chain builds together.

   • Build Rules: Specify the triggers, tags, and paths of your builds. Ignore any entry where Autobuild is toggled off.

   • Build Environment Variables: User-defined variables injected as environment variables into your build. You need to add these to your workflow. If the environment variables contain secrets, add them to your CI service's secrets manager. Then update your Dockerfile or build scripts to reference these secrets using your CI platform's syntax. See your CI service documentation on how to handle secrets.

Example configuration

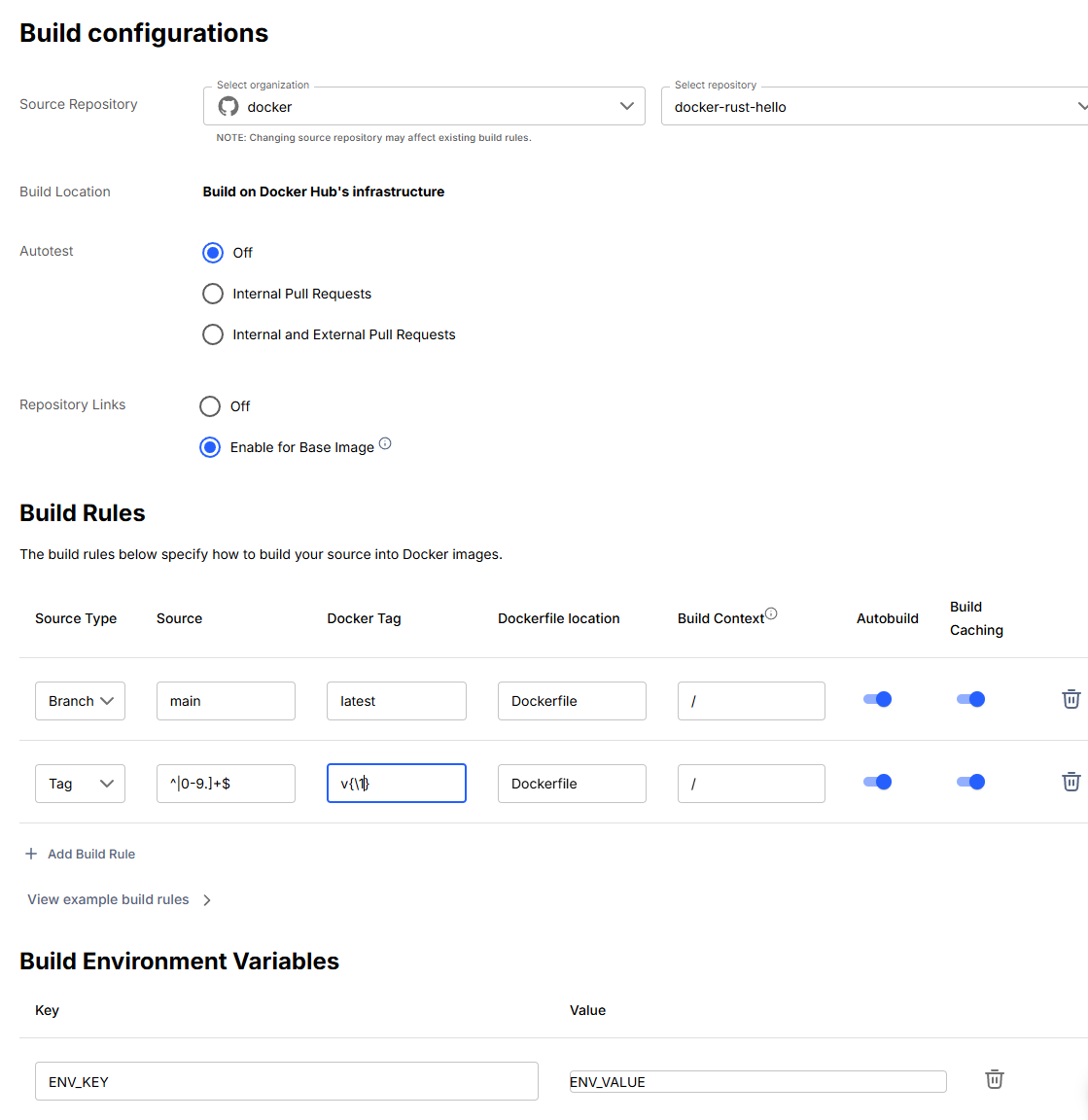

The following image shows an example Autobuilds configuration.

Based on the pictured example, you would note the following items for this Autobuilds configuration:

• Source code repository: GitHub repository docker/docker-rust-hello
• Autotest: Disabled
• Build rule 1: Build and push the image with tag latest when a new commit to the main branch is detected. The Dockerfile is at ./Dockerfile and the build context is the root of the cloned code.
• Build rule 2: Build and push the image with tag v{\1} when a new commit to a tag matching the regex ^v([0-9.]+)$ is detected. The Dockerfile is at ./Dockerfile and the build context is the root of the cloned code.
• Environment variable: Key ENV_KEY with value ENV_VALUE

Step 3: Migrate to your CI/CD platform

Select the tab that matches your source code repository hosting platform.
